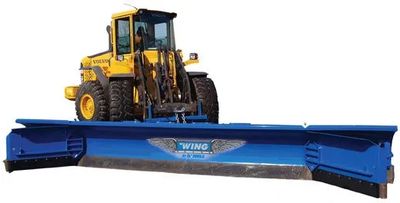

Imagine having a Heavy Duty Straight Blade, Wing Plow, and Box Plow mounted on the same loader, all at the same time. No more returning to the shop to swap out plows. No more trying to make a Straight Blade do the work of a Box Plow. You don’t have to imagine any longer because Daniels 3in1 Plow is here! With a flick of a switch, from inside the cab, this fully hydraulic plow transforms from a Straight Blade to a Box Plow, or any shape in between. Each Wing can be controlled separately, and the entire plow hydro turns 35 degrees in either direction, for an unlimited combination of shapes that best match snow and surface conditions. Pros have used the Daniels Wing Plow with Patented Pusher Kit for years to move large quantities of snow quickly. Now they can enjoy the additional benefits of having a Straight Blade and Box Plow built into the same piece of equipment.

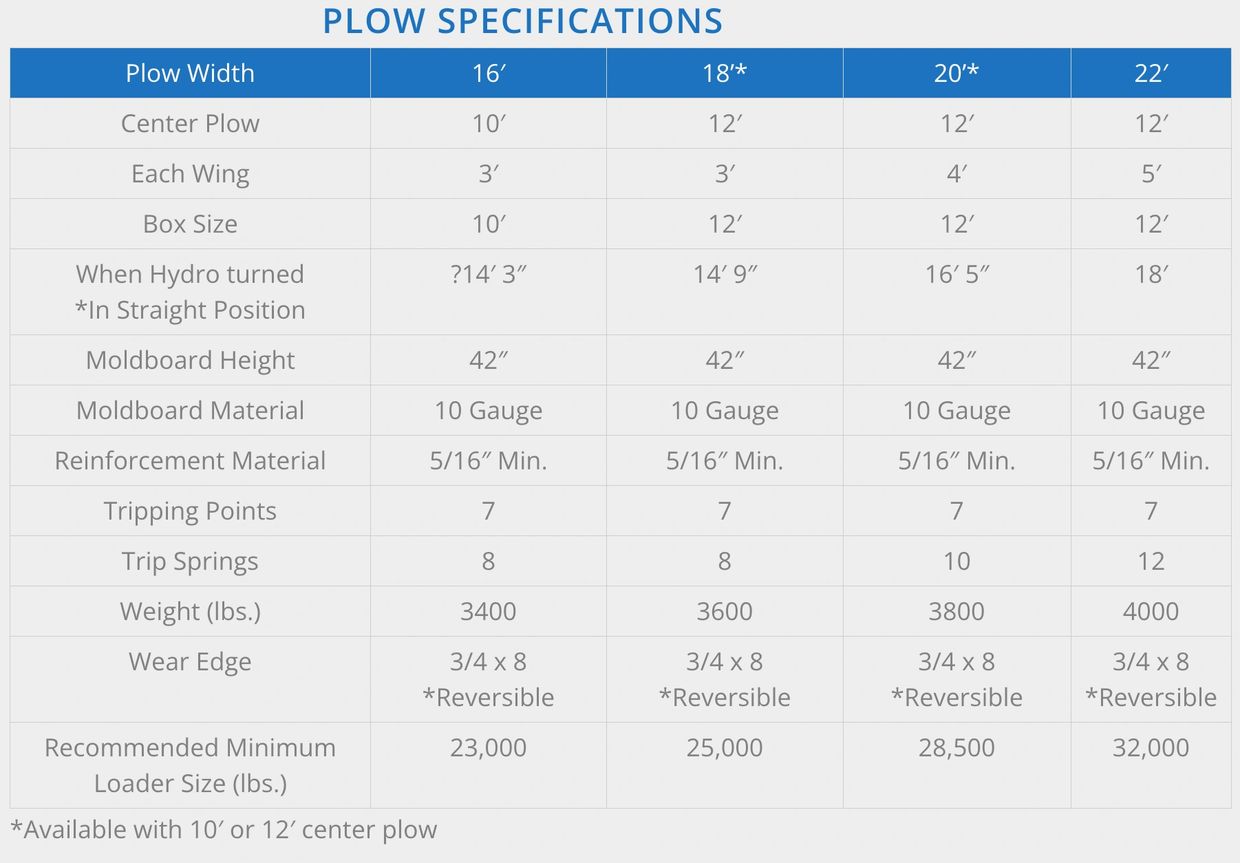

Plow Width: 16'
Center Plow: 10'
Each Wing: 3'
Box Size: 10'
When Hydro turned *In Straight Position: 14'3"
Moldboard Height: 42"
Moldboard Material: 10 Gauge
Reinforcement Material: 5/16" Min.
Tripping Points: 7
Trip Springs: 8
Weight: 3400 lbs.
Wear Edge: 3/4 x 8 *Reversible
Recommended Minimum Loader Size: 23,000 lbs.
Plow Width: 20'
Center Plow: 12'
Each Wing: 4'
Box Size: 12'
When Hydro turned *In Straight Position: 16'5"
Moldboard Height: 42"
Moldboard Material: 10 Gauge
Reinforcement Material: 5/16" Min.
Tripping Points: 7
Trip Springs: 10
Weight: 3800 lbs.
Wear Edge: 3/4 x 8 *Reversible
Recommended Minimum Loader Size: 28,500 lbs.
Plow Width: 18'
Center Plow: 12'
Each Wing: 3'
Box Size: 12'
When Hydro turned *In Straight Position: 14'9"
Moldboard Height: 42"
Moldboard Material: 10 Gauge
Reinforcement Material: 5/16" Min.
Tripping Points: 7
Trip Springs: 8
Weight: 3600 lbs.
Wear Edge: 3/4 x 8 *Reversible
Recommended Minimum Loader Size: 25,000 lbs.
Plow Width: 22'
Center Plow: 12'
Each Wing: 5'
Box Size: 12'
When Hydro turned *In Straight Position: 18'
Moldboard Height: 42"
Moldboard Material: 10 Gauge
Reinforcement Material: 5/16" Min.
Tripping Points: 7
Trip Springs: 12
Weight: 4000 lbs.
Wear Edge: 3/4 x 8 *Reversible
Recommended Minimum Loader Size: 32,000 lbs.
*3118 and 3120 are Available with 10' and 12' Centerpieces
